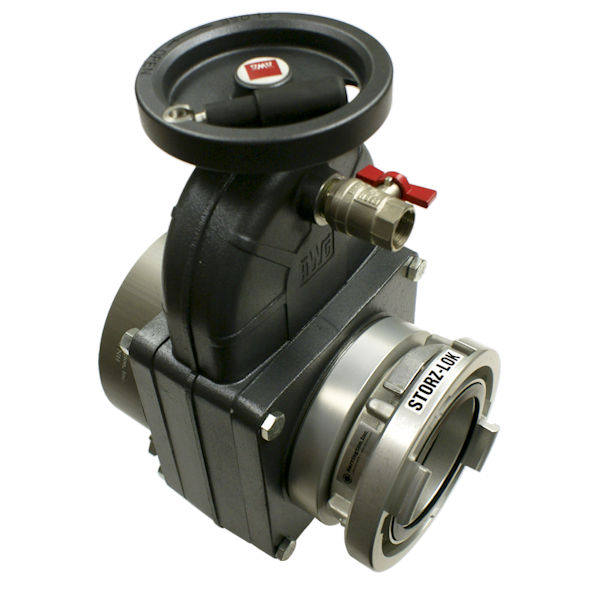

H860- Super Flow Straight 6” Gate Valves
Parts Manual
Assembly No.: 20451233
Description: H860
VIEW FULL PRODUCT

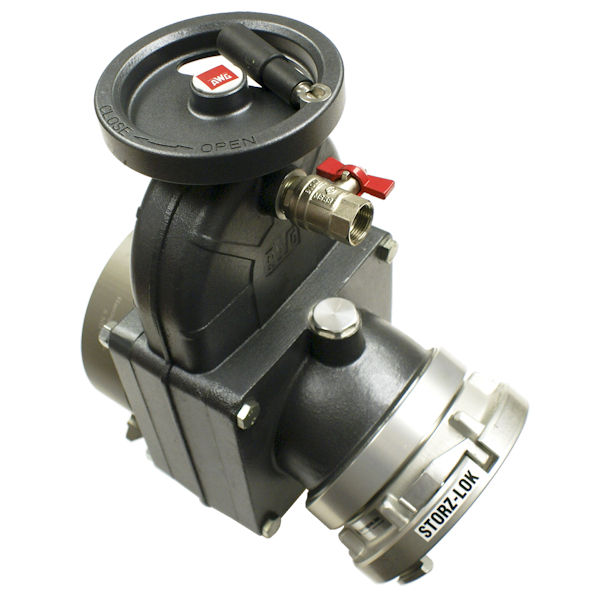

H861- 25° Elbow 6” Gate Valve
Parts Manual
Assembly No.: 20451233
Description: H861
VIEW FULL PRODUCT
| Pos. | Qty. | Part No. | Description | Material | US $ Price |
|---|---|---|---|---|---|
| 2 | 1 | 30398635 | Gate | Aluminum | $657.00 |
| 3 | 1 | 30397045 | Spindle | Stainless | NA |
| **4 | 1 | 00097354 | Gasket 17x23x1 | Rubber | $12.00 |
| **5 | 1 | 00011251 | O-Ring 12.37×2.62 | Nitrile | $7.00 |
| 6 | 1 | 80042535 | Bushing | Aluminum | $131.00 |
| **7 | 1 | 00021551 | O-Ring 28.58×3.59 | Nitrile | $5.00 |
| **8 | 1 | 00097554 | Gasket 18x26x3 | PTFE | $9.00 |
| 9 | 1 | 30291233 | Handwheel w/Folding Knob | Aluminum | $286.00 |
| 10 | 1 | 00227248 | Washer 8.4 | Steel | $4.00 |
| 11 | 1 | 00173045 | Head Screw 8×12 | Steel | $4.00 |
| 12 | 1 | 50300962 | Handwheel Cap | Aluminum | $10.00 |
| **14 | 1 | 00084868 | Gasket 25x33x3 | Rubber | $11.00 |
| 15 | 2 | 50374231 | Support Ring | Aluminum | $71.00 |
| **16 | 2 | 00016451 | O-Ring 158.43×2.62 | Nitrile | $9.00 |
| **17 | 2 | 50374358 | Profile gasket | Rubber | $94.00 |
| **18 | 2 | 00016251 | O-Ring 145.72×2.62 | Nitrile | $8.00 |
| 19 | 2 | 30396732 | H860 Flange x 6″ BSP Male | Aluminum | $658.00 |
| 1 | 30007232 | H860 Flange x 6″ Ball Groove (not on drawing) | Aluminum | $469.00 | |
| 1 | 20211032 | H861 Flange x 25° Elbow (not on drawing) | Aluminum | $755.00 | |
| 20 | 4 | 00167248 | Hex Bolt 12×140 | Steel | $10.00 |
| 21 | 4 | 00126448 | Washer 13 | Steel | $3.60 |
| 22 | 4 | 00174548 | Hex Nut | Steel | $3.00 |
| **23 | 1 | 00061750 | Gasket 120x26x2 | PTFE | $5.00 |
| 24 | 1 | 60623597 | 3/4 Air Bleeder | Brass | $53.00 |
| ** | 1 | H860-RK | Repair Kit: Includes ** | $271.00 | |
| ** | 1 | H861-RK | Repair Kit: Includes ** | $271.00 |
