PARTS: H301 LDH 3-Way Manifold

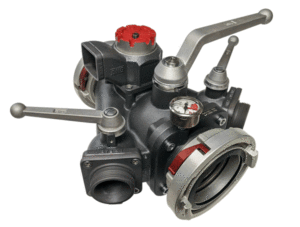

H301 LDH 3-Way Manifold
Parts Manual
Assembly No.: 10067402
Description: H301
VIEW FULL PRODUCT
| Pos. | Qty. | Part No. | Description | Material | US $ Price |
|---|---|---|---|---|---|
| 2 | 1 | 20003035 | Ball | Aluminum | $568.00 |
| **4 | 1 | 00079359 | Gasket 17x28x1 | Polyamide | $5.00 |
| 5 | 1 | 50197045 | Bearing Screw 18×40 | Stainless | $79.00 |
| 1 | HPG-100-H | Pressure Gauge | 0-300 psi | $ 78.00 | |
| **7 | 1 | 00021651 | O-Ring 28.58×3.53 | Nitrile | $5.00 |
| **8 | 1 | 00065959 | Gasket 39x52x1 | Polyamide | $4.00 |
| 10 | 1 | 55093432 | Handle Stop (Center) | Aluminum | $58.00 |
| 11 | 1 | 30269432 | Handle (Center) | Aluminum | $258.00 |
| 12 | 1 | 50275548 | Washer 12.5x34x3 | Steel | $8.00 |
| 13 | 1 | 50079448 | Screw 12×18 | Steel | $28.00 |
| **14 | 1 | 50137254 | Gasket 100x110x3 | PTFE | $152.00 |
| 15 | 1 | 50283934 | Support Ring | Aluminum | $100.00 |
| **16 | 1 | 00034451 | O-Ring 97.79×5.33 | Nitrile | $17.00 |
| 17 | 1 | 30259432 | Flange | Aluminum | $351.00 |
| **18 | 1 | 00035751 | O-Ring 139.07×5.33 | Nitrile | $16.00 |
| 19 | 4 | 00216348 | Socket Screw 14×35 | Steel | $9.00 ea. |
| 22 | 4 | 00214448 | Socket Screw 8×25 | Steel | $4.00 ea. |
| **22.1 | 1 | 00094750 | Gasket 75x83x3 | Nitrile | $13.00 |
| 24 | 2 | 40054135 | Ball | Aluminum | $143.00 ea. |
| **26 | 2 | 00079259 | Gasket 14x22x1 | Polyamide | $4.00 ea. |
| 27 | 2 | 50115845 | Bearing Screw 14×28 | Stainless | $ 74.00 |
| **29 | 2 | 00021251 | O-Ring 21.82×3.53 | Nitrile | $17.00 ea. |
| 30 | 2 | 50105645 | Set Screw 8×12 | Stainless | $5.00 ea. |
| 31 | 2 | 55111132 | Handle Stop (Outer) | Aluminum | $61.00 ea. |
| 33 | 2 | 30209232 | Straight Handle (Outer) | Aluminum | $92.00 ea. |
| 34 | 2 | 00210347 | Lock Washer 12.5 | Spring Steel | $5.00 ea. |
| 35 | 2 | 50184548 | Screw 10×15 | Steel | $36.00 ea. |
| **36 | 2 | 50176570 | Profile Gasket | PTFE | $139.00 ea. |
| 37 | 2 | 40055535 | Flange 2½ NH Male | Aluminum | $99.00 ea. |
| 38 | 8 | 00215148 | Socket Screw 10×20 | Steel | $5.00 ea. |
| 1 | HRV-250-S | Relief Valve | 75-250 psi | $596.00 | |
| ** | 1 | H301-RK | Repair Kit: Includes ** | $532.00 |
