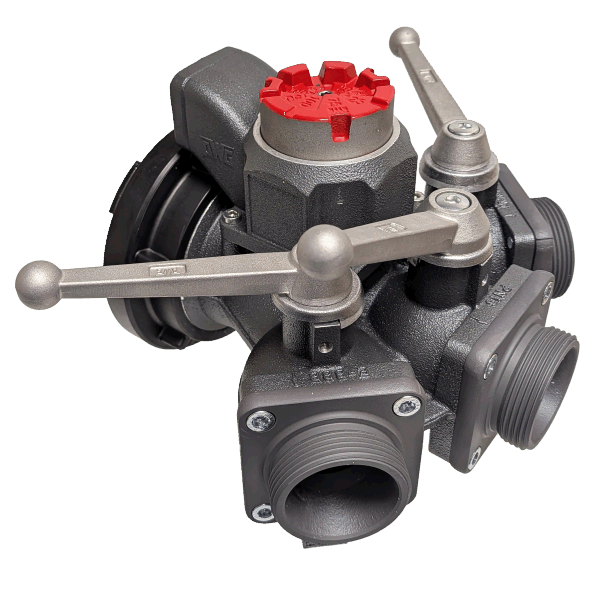

H300 3-Way Ball Valve
Parts Manual
Assembly No.: 10047401
Description: H300
VIEW FULL PRODUCT
| Pos. | Qty. | Part No. | Description | Material | US $ Price |
|---|---|---|---|---|---|
| 2 | 3 | 40054135 | Ball | Aluminum | $143.00 ea. |
| **4 | 3 | 00079259 | Gasket 14x22x1 | Polyamide | $4.00 ea. |
| 5 | 3 | 50115845 | Bearing Screw 14×28 | Stainless | $74.00 ea. |
| **7 | 3 | 00021251 | O-Ring 21.82×3.53 | Nitrile | $17.00 ea. |
| 8 | 3 | 50105645 | Set Screw 8×12 | Stainless | $5.00 ea. |
| 9 | 3 | 55111132 | Handle Stop | Aluminum | $61.00 ea. |
| 10 | 2 | 30209232 | Straight Handle (Outer) | Aluminum | $92.00 ea. |
| 11 | 1 | 40146532 | Angled Handle (Center) | Aluminum | $92.00 |
| 12 | 3 | 00210347 | Lock Washer 12.5 | Spring Steel | $5.00 ea. |
| 13 | 3 | 50184548 | Screw 10×15 | Steel | $36.00 ea. |
| **14 | 3 | 50176570 | Profile Gasket | PTFE | $139.00 ea. |
| 15 | 3 | 40055535 | Flange 2½” NH Male | Aluminum | $99.00 ea. |
| 16 | 12 | 00215148 | Socket Screw 10×20 | Steel | $5.00 ea. |
| 19 | 4 | 00214448 | Socket Screw 8×25 | Steel | $4.00 ea. |
| **19.1 | 1 | 00094750 | Gasket 75x83x3 | Nitrile | $13.00 |
| 1 | HRV-250-S | Relief Valve | 75-250 psi | $596.00 | |
| ** | 1 | H300-RK | Repair Kit: Includes ** | $493.00 |
