H200 2-Way Ball Valve
Parts Manual
Assembly No.: 60331233
Description: H200
VIEW FULL PRODUCT

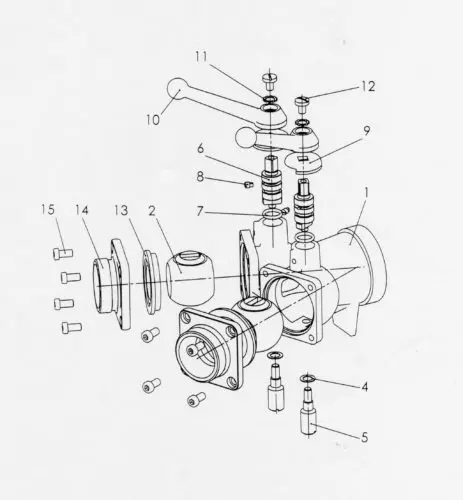

| Pos. | Qty. | Part No. | Description | Material | US $ Price |
|---|---|---|---|---|---|
| 2 | 2 | 40054135 | Ball | Aluminum | $143.00 ea. |
| **4 | 2 | 00079259 | Gasket 14x22x1 | Polyamide | $4.00 ea. |
| 5 | 2 | 50241845 | Foot Screw 14×68 | Stainless | $68.00 ea. |
| 6 | 2 | 40048645 | Tappet 28×77 | Stainless | NA |
| **7 | 2 | 00021251 | O-Ring 21.82×3.53 | Nitrile | $17.00 ea. |
| 8 | 2 | 50105645 | Set Screw 8×12 | Stainless | $5.00 ea. |
| 9 | 2 | 55111132 | Handle Stop | Aluminum | $61.00 ea. |
| 10 | 2 | 40146532 | Angled Handle | Aluminum | $92.00 ea. |
| 11 | 2 | 00210347 | Lock Washer 12.5 | Spring Steel | $5.00 ea. |
| 12 | 2 | 50184548 | Screw 10×15 | Steel | $36.00 ea. |
| **13 | 2 | 50176570 | Profile Gasket | PTFE | $139.00 ea. |
| 14 | 2 | 40055535 | Flange 2 1/2″ NH Male | Aluminum | $99.00 ea. |
| 15 | 8 | 00215148 | Socket Screw 10×20 | Steel | $5.00 ea. |
| ** | 1 | H200-RK | Repair Kit: Includes ** | $320.00 |
