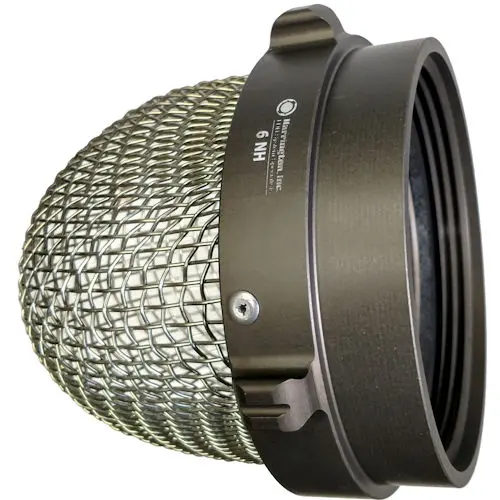

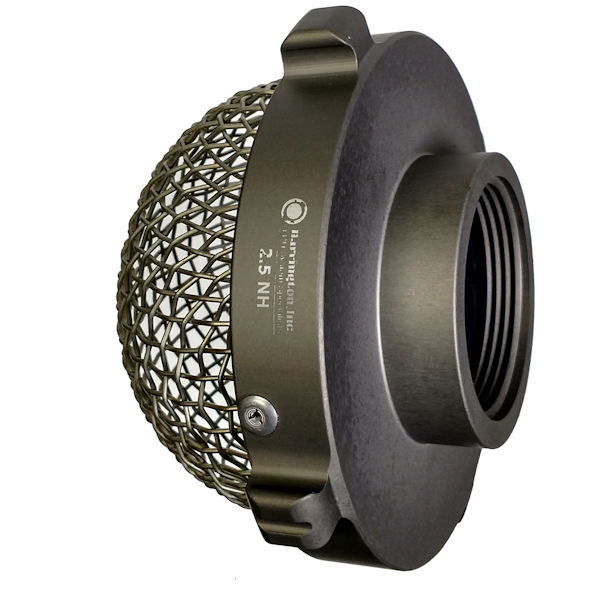

Lightweight T6061-T6 aluminum body anodized to Military specification Type 3 for durability with rigid stainless steel mesh screen. Basket strainers provide the best performance when drafting, while reducing debris from entering a pump and provides full flow into the suction hose. This same device can be used to diffuse water when testing hydrants to diffuse the flow safely.
Notes:
- Available in female sizes 2.5” through 6”
- NH, NST, or NPSH threads standard
- Rocker lug for easy secure tightening
- Includes flat face gasket
When ordering specify quantity, size, and thread type.
Weights and Dimensions:
| Size | OAL | Weight | Dia. |
| 2.5″ | 5-5/16″ | 2.9 | 6-7/8″ |
| 3″ | 5-7/16″ | 3.1 | 6-7/8″ |
| 3.5″ | 5-7/16″ | 3.2 | 6-7/8″ |
| 4″ | 5-9/16″ | 3.3 | 6-7/8″ |
| 4.5″ | 5-9/16″ | 3.4 | 6-7/8″ |
| 5″ | 5-11/16″ | 3.5 | 6-7/8″ |
| 6″ | 7-15/16″ | 4.8 | 8″ |
| Weight is rounded to nearest 1/10th of a lb. | |||
PRINT a diffuser product bulletin
Description
| Part Number | Description | List |
| HWMBS-25NH | 2.5” NH Female Basket Suction Strainer-Diffuser | $385.00 |
| HWMBS-30NH | 3” NH Female Basket Suction Strainer-Diffuser | $400.00 |
| HWMBS-35NH | 3.5” NH Female Basket Suction Strainer-Diffuser | $415.00 |
| HWMBS-40NH | 4” NH Female Basket Suction Strainer-Diffuser | $455.00 |
| HWMBS-45NH | 4.5” NH Female Basket Suction Strainer-Diffuser | $470.00 |
| HWMBS-50NH | 5” NH Female Basket Suction Strainer-Diffuser | $565.00 |
| HWMBS-60NH | 6” NH Female Basket Suction Strainer-Diffuser | $620.00 |
