Flange NH Male Adapters
* New Flange Coating Process*

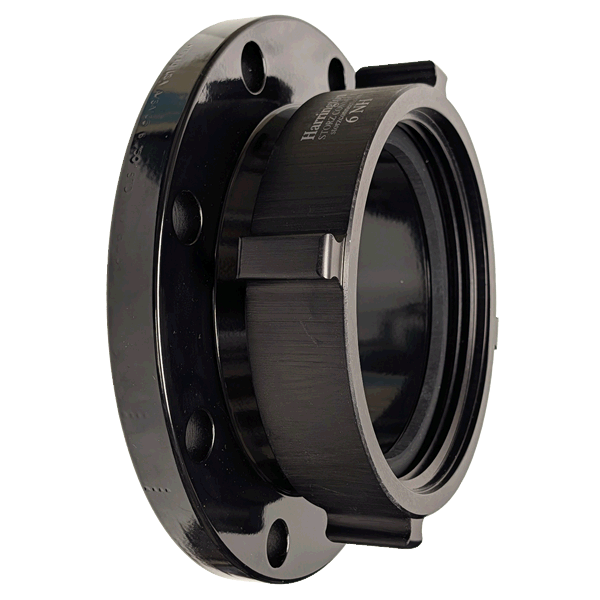

Harrington Inc, Flange adapters are available in straight and 30 degree elbow NH Male & Female fittings. All adapters are hard coat anodized for corrosion resistance. Carbon steel 150# ANSI flange is stripped and cleaned of any manufacturing oils or dirt providing a good base for primer adhesion. A Zinc rich primer coat is applied that seals the entire carbon steel flange. A powder coat finish is then applied to the flange – red or black. The primer and top coat include the entire flange and is applied red flange to storz after threads have been cut. These adapters are available with Flat Face or Raised Face Flanges ideal for use in Fixed facilities, pump connections, or other permanent mounting for years of continued service.
Description
Not seeing the size or product that you need? Give us a call, custom sizes are available.
| Part Number | Description | LIST | Spec Sheet |
| Threaded #150 Flanges Flat Face | |||
| HFL-FF-30-25ST/Cap | 3″ flat face 150# carbon steel flange x anodized aluminum 2.5″ Storz (65) with Cap/cable | $400.00 | |
| HFL-FF-30-30ST/Cap | 3″ flat face 150# carbon steel flange x anodized aluminum 3″ Storz (75) with Cap/cable | $407.00 | |
| HFL-FF-40-40ST/Cap | 4″ flat face 150# carbon steel flange x anodized aluminum 4″ Storz lock with Cap/cable | $580.00 | |
| HFL-FF-404030E/Cap | 4″ flat face 150# carbon steel flange x anodized aluminum 30° Elbow 4″ Storz lock with Cap/cable | $747.00 | |
| HFL-FF-40-50ST/Cap | 4″ flat face 150# carbon steel flange x anodized aluminum 5″ Storz lock with Cap/cable | $739.00 | |
| HFL-FF-405030E/Cap | 4″ flat face 150# carbon steel flange x anodized aluminum 30° Elbow 5″ Storz lock with Cap/cable | $864.00 | |
| HFL-FF-50-50ST/Cap | 5″ flat face 150# carbon steel flange x anodized aluminum 5″ Storz lock with Cap/cable | $953.00 | |
| HFL-FF-60-50ST/Cap | 6″ flat face 150# carbon steel flange x anodized aluminum 5″ Storz lock with Cap/cable | $950.00 | |
| HFL-FF-605030E/Cap | 6″ flat face 150# carbon steel flange x anodized aluminum 30° Elbow 5″ Storz lock with Cap/cable | $1,009.00 | |
| HFL-FF-60-60ST/Cap | 6″ flat face 150# carbon steel flange x anodized aluminum 6″ Storz lock with Cap/cable | $922.00 | |
| HFL-FF-606030E/Cap | 6″ flat face 150# carbon steel flange x anodized aluminum 30° Elbow 6″ Storz lock with Cap/cable | $1,237.00 | |
| Threaded #150 Flanges Raised Face | |||
| HFL-RF-40-40ST/Cap | 4″ raised face 150# carbon steel flange x anodized aluminum 4″ Storz lock with Cap/cable | $576.00 | |
| HFL-RF-404030E/Cap | 4″ raised face 150# carbon steel flange x anodized aluminum 30° Elbow 4″ Storz lock with Cap/cable | $777.00 | |
| HFL-RF-40-50ST/Cap | 4″ raised face 150# carbon steel flange x anodized aluminum 5″ Storz lock with Cap/cable | $732.00 | |
| HFL-RF-405030E/Cap | 4″ raised face 150# carbon steel flange x anodized aluminum 30° Elbow 5″ Storz lock with Cap/cable | $857.00 | |
| HFL-RF-50-50ST/Cap | 5″ raised face 150# carbon steel flange x anodized aluminum 5″ Storz lock with Cap/cable | $953.00 | |
| HFL-RF-60-50ST/Cap | 6″ raised face 150# carbon steel flange x anodized aluminum 5″ Storz lock with Cap/cable | $948.00 | |
| HFL-RF-605030E/Cap | 6″ raised face 150# carbon steel flange x anodized aluminum 30° Elbow 5″ Storz lock with Cap/cable | $1,005.00 | |
| HFL-RF-60-60ST/Cap | 6″ raised face 150# carbon steel flange x anodized aluminum 6″ Storz lock with Cap/cable | $921.00 | |
| HFL-RF-606030E/Cap | 6″ raised face 150# carbon steel flange x anodized aluminum 30° Elbow 6″ Storz lock with Cap/cable | $1,233.00 |
