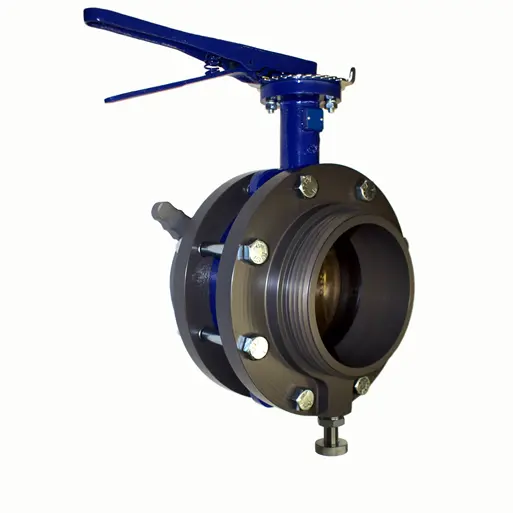

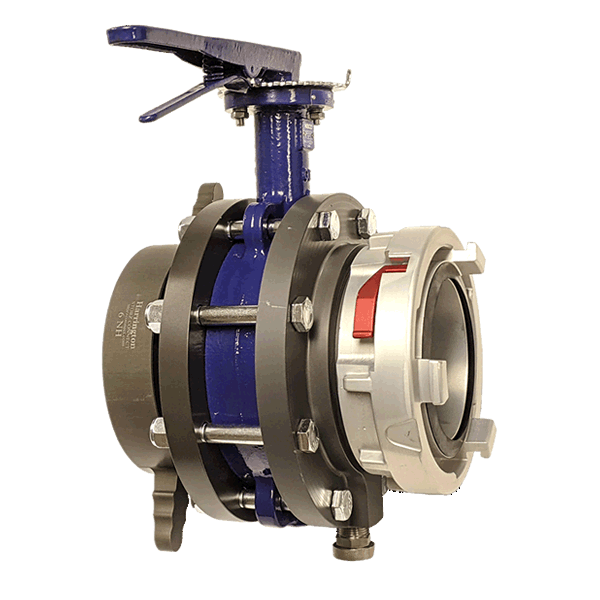

- Bubble tight shut off 4”, 5”, and 6” Butterfly valves
- NH/NPSH thread by Storz connections
- Lever operator or gear operator for slow open/close operation
- EPDM rubber liner
- Bi-Directional
- Aluminum bronze disc
- Cast iron body
- Optional Hand Wheel crank with fold down knob in place of lever operator. Body is isolated from flow stream
- Bronze shaft bushings
- Stainless steel stem
- Working pressure 200 PSI
- Stainless steel screw drain
Description
| Part Number | Description | List |
| HSBFV-40-40NHLH | Butterfly Valve 4" Storz x 4" NH Female Swivel Long Handle | $2,660.00 |
| HSBFV-40-40NPSHLH | Butterfly Valve 4" Storz x 4" NPSH Female Swivel Long Handle | $2,660.00 |
| HSBFV-40-45NHLH | Butterfly Valve 4" Storz x 4.5" NH Female Swivel Long Handle | $2,650.00 |
| HSBFV-40-50NHLH | Butterfly Valve 4" Storz x 5" NH Female Swivel Long Handle | $2,645.00 |
| HSBFV-40-60NHLH | Butterfly Valve 4" Storz x 6" NH Female Swivel Long Handle | $2,685.00 |
| HSBFV-50-40NHLH | Butterfly Valve 5" Storz x 4" NH Female Swivel Long Handle | $2,610.00 |
| HSBFV-50-45NHLH | Butterfly Valve 5" Storz x 4.5" NH Female Swivel Long Handle | $2,590.00 |
| HSBFVH-50-45NHLH | Butterfly Valve 5" Storz x 4.5" NH Female Swivel Long Handle with Handwheel | $3,220.00 |
| HSBFV-50-50NHLH | Butterfly Valve 5" Storz x 5" NH Female Swivel Long Handle | $2,585.00 |
| HSBFVH-50-50NHLH | Butterfly Valve 5" Storz x 5" NH Female Swivel Long Handle with Handwheel | $3,210.00 |
| HSBFV-50-60NHLH | Butterfly Valve 5" Storz x 6" NH Female Swivel Long Handle | $2,630.00 |
| HSBFV-50-NF/Cap | To be Mounted to a 6” Flange in the Field x 5” Storz with Lock with 5” Storz cap/cable | $1,890.00 |
| HSBFVH-50-60NHLH | Butterfly Valve 5” Storz x 6” NH Female Swivel Long Handle | $3,255.00 |
| HSBFV-60-40NHLH | Butterfly Valve 6" Storz x 4" NH Female Swivel Long Handle | $2,605.00 |
| HSBFV-60-45NHLH | Butterfly Valve 6" Storz x 4.5" NH Female Swivel Long Handle | $2,590.00 |
| HSBFV-60-50NHLH | Butterfly Valve 6" Storz x 5" NH Female Swivel Long Handle | $2,585.00 |
| HSBFV-60-60NHLH | Butterfly Valve 6" Storz x 6" NH Female Swivel Long Handle | $2,625.00 |
| HABS | 0.75" Screw Down Bleeder Valve NPT | $115.00 |
Special Threads available on request, cost as follows: Allow 4-5 weeks for special threads.
• All Special Threads = $15.00 net, each
• 1” to 3.5” – NPT Threads = No Charge
• 4″ and up – NPT Threads = $15.00 net, each
