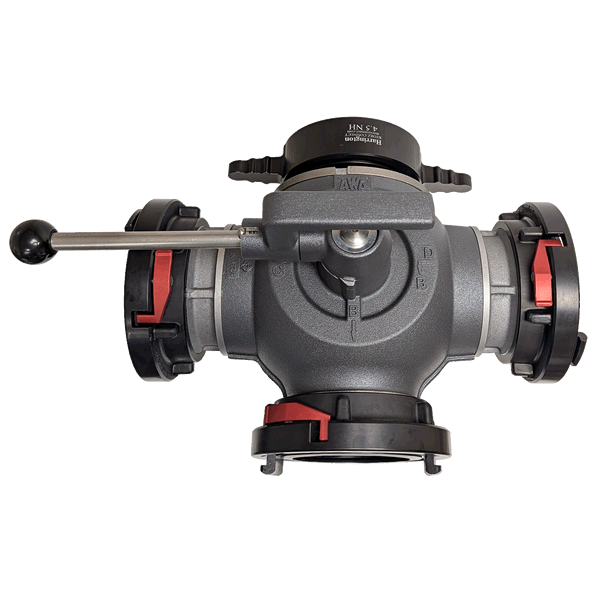

Excellent for boosting pressure on long hose lays or for boosting low hydrant pressures. The light-weight hydrant valve enables the first-in pumper to lay LDH directly from the hydrant to the fire and when hose lay is completed, start flowing water from the hydrant. If additional pressure is required, another pumper can connect to the Hydrassist valve and start pumping to raise pressure and flow without interrupting the established water supply. The valve provides an emergency shut-down capability. Choose from a variety of sizes of Storz or NST connections.
The friction loss on the Hydrassist is as follows:
1,000 GPM = 3.36 PSI
1,200 GPM = 4.86 PSI
Dimensions: H: 13” L: 12.75” W: 17”
Weight: 35 lbs
View an instructional video HERE
PRINT an Instruction Manual with Friction Loss
Description
| Part Number | Description | LIST |
| H700-40-40NH | 5” Hydrassist Hydrant valve 4” NH female swivel long handle inlet x (3) 4” Storz-Lok connections | $4,214.00 |
| H700-40-40ST | 5” Hydrassist Hydrant valve 4” Storz-Lok part time swivel inlet x (3) 4” Storz-Lok connections | $4,383.00 |
| H700-40-45NH | 5” Hydrassist Hydrant valve 4.5” NH female swivel long handle inlet x (3) 4” Storz-Lok connections | $4,201.00 |
| H700-40-50NH | 5” Hydrassist Hydrant valve 5” NH female swivel long handle inlet x (3) 4” Storz-Lok connections | $4,222.00 |
| H700-45-40-45-40 | 5” Hydrassist Hydrant valve 4.5” NH female swivel long handle inlet x 4” Storz-Lok outlet with 4.5” NH male and 4” Storz-Lok | $4,040.00 |
| H700-50-40NH | 5” Hydrassist Hydrant valve 4” NH female swivel long handle inlet x (3) 5” Storz-Lok connections | $4,044.00 |
| H700-50-40ST | 5” Hydrassist Hydrant valve 4” Storz-Lok part time swivel inlet x (3) 5” Storz-Lok connections | $4,214.00 |
| H700-50-45NH | 5” Hydrassist Hydrant valve 4.5” NH female swivel long handle inlet x (3) 5” Storz-Lok connections | $4,031.00 |
| H700-50-50NH | 5” Hydrassist Hydrant valve 5” NH female swivel long handle inlet x (3) 5” Storz-Lok connections | $4,051.00 |
| H700-50-50ST | 5” Hydrassist Hydrant valve 5” Storz-Lok part time swivel inlet x (3) 5” Storz-Lok connections | $4,140.00 |
| HPM-HV | Post mount bracket for the H700 Hydrassist Valve | $338.00 |
